Product Description

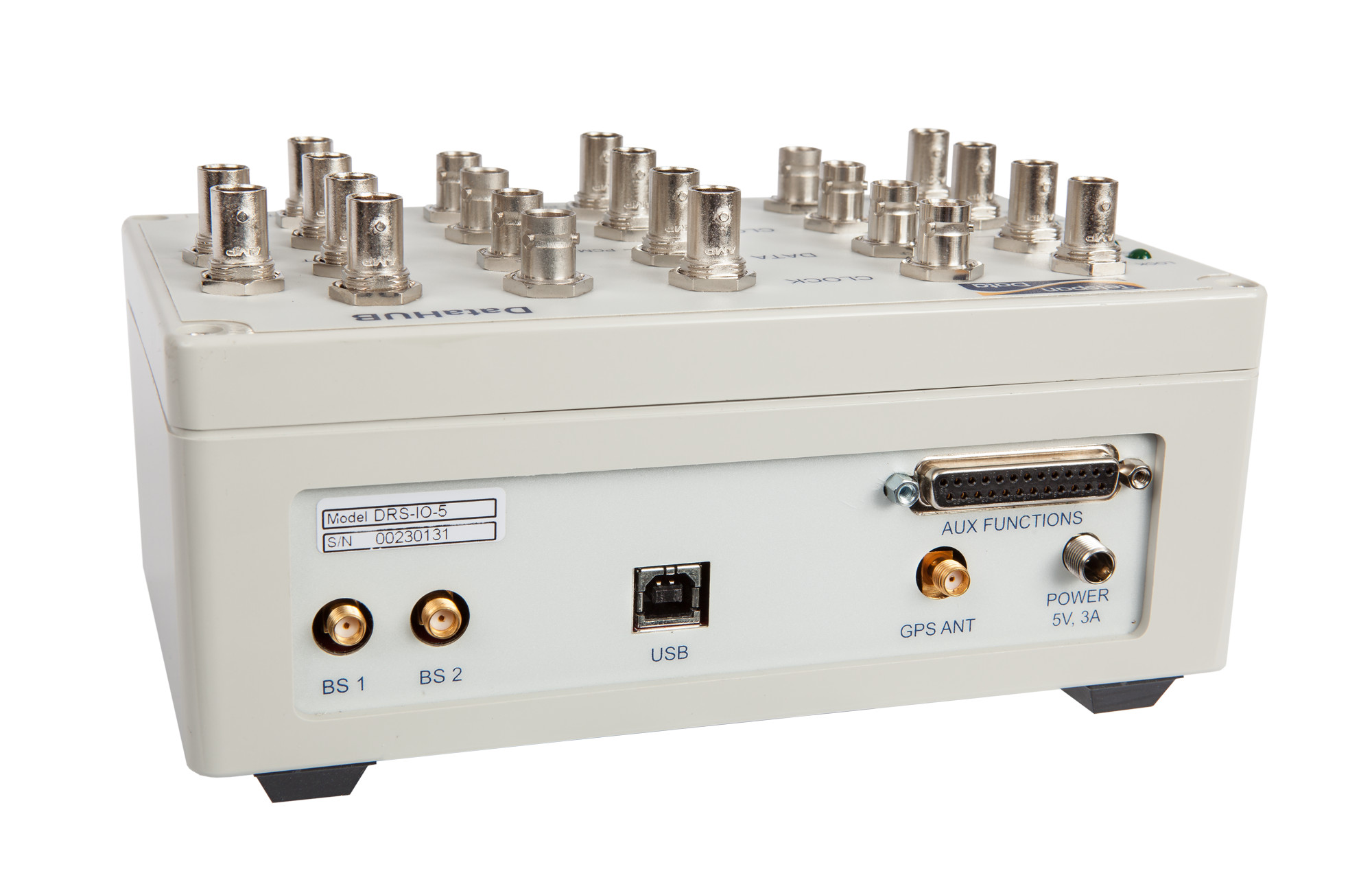

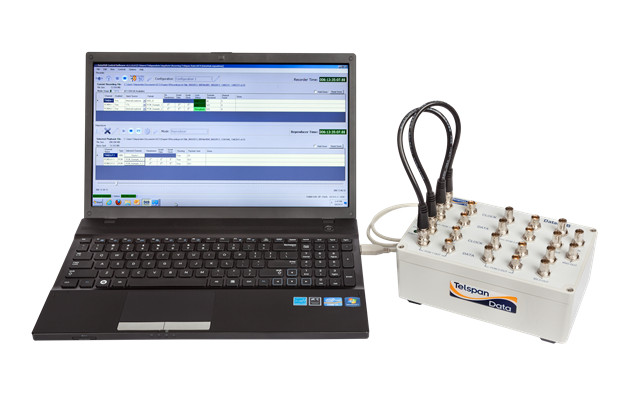

This small self-contained, low-cost portable device provides capabilities, accuracies and performance normally found is much more expensive traditional PCM recorder/reproducer systems.A .NET Windows application, DataHUB Control Software (DCS) is provided along with a full API to expand the capabilities of this powerful yet flexible device.

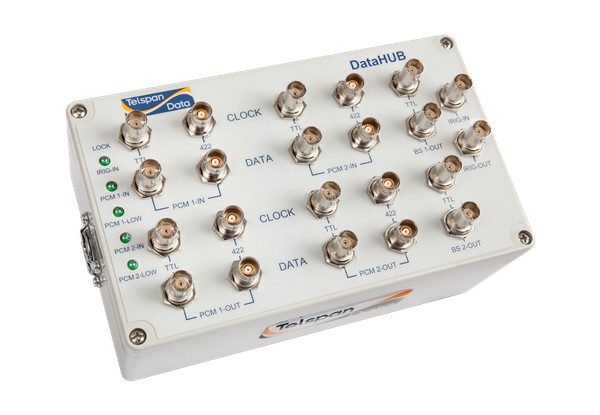

PCM Inputs/Outputs
- 20Mbps Per Channel (2 Inputs and 2 Outputs), Fully Independent
- TTL (BNC) and RS-422 (Triax) Connectors
- 50?, 75? or 1K? Terminations Available
- NRZ-L/M/S, BIO-L/M/S, RNRZ-L
- De-Randomize, Invert Data/Clock
- Internal Loopback
IRIG Time Inputs/Outputs
- IRIG-A/B/G Input (AM and DC)
- IRIG-A/B/G Output (AM and DC)
- Time Code Generator Seed – External IRIG or Internal GPS
- Internal Loopback
GPS Receiver
- NMEA 0183 & 1PPS Outputs
Optional Bit Synchronizers
- (2) Channels @ 20Mbps Each
- De-Randomizer 9/11/15/17/23 Bit
- NRZ-L/M/S, BIO-L/M/S, DM-M/S
Chapter 10 Record/Reproduce/Publish
- High Stability RTC
- +1µ Second Time Tagging/Alignment
- Throughput, Packed, Unpacked PCM Modes
- 16 or 32 Bit PCM Alignments
- Selectable Sync Strategy
- Fully Independent Record & Reproduce
- IRIG-A/B/G or GPS UTC Time Packets
- Full Chapter 6 Dot Command for Remote Command/Control
Integrated Bit Error Rate Tester
PCM Input Comparator Mode (4 Channels)
DH-2-2: 2 PCM Input & 2 PCM Output Channels, IRIG-A/B/G Input & Output Channels
BS-2-2: 2 Channels Digital Bit Sync, Mezzanine Card, 20Mbps
*DH-4-I: 4 PCM Input Channels, IRIG-A/B/G Input & Output Channels
*DH-4-O: 4 PCM Output Channels, IRIG-A/B/G Input & Output Channels*Available on special order. DH-4-I Also available in PCM input comparator configuration.
BS-2-2: 2 Channels Digital Bit Sync, Mezzanine Card, 20Mbps
*DH-4-I: 4 PCM Input Channels, IRIG-A/B/G Input & Output Channels
*DH-4-O: 4 PCM Output Channels, IRIG-A/B/G Input & Output Channels*Available on special order. DH-4-I Also available in PCM input comparator configuration.
